learning design case study
The student is no longer a recipient of explanations, they are the source of them.
introduction
You may be familiar with Seymour Papert's LOGO turtle1, which draws shapes on screen given programmed instructions from elementary school students. In one story, a child sees draw a line, and is asked now to draw a square. He scripts , and watches as the turtle draws... a longer line.
In this moment, the child received "recursive feedback" and had the opportunity to refine his understanding and explanation of a square. He excitedly asks how to make the turtle turn...
problem
Chatbot tutors aren't working for most students2. They can supply explanations and answer lots of questions, but in doing so they take on all the cognitive work. Students lapse into passivity: "idk". The typical chatbot tutor assumes the student comes with a question; the chatbot comes with the answer. This leaves little room for students to put their own ideas in.
solution
In this prototype I flip the tutoring roles. The agent-as-tutee (AT) is the one asking for help, and the student user (SU) is the tutor. The AT is deliberately constrained so that it cannot solve the problems on its own. It genuinely needs the student's ideas to proceed. Now the student is no longer a recipient of explanations, they are the source of them.
theoretical background and why LLMs
The child programming in LOGO knew a square had four sides and that explanation had served
him well in previous contexts. He used that knowledge to supply four copies of
FW 10, and he observed the turtle earnestly interpret his instructions. In that
moment of recursive feedback, he realizes he must modify his partial explanation to adapt
to this new context, and make connections with new ideas such as angles and rotation.
The structure of this prototype is built on theories of student conceptions-in-progress and layers of feedback. First, we reconceive misconceptions3 not as wrong ideas to be replaced, but instead as useful conceptions in previous contexts that need refinement as contexts mature. Thus, we aim to draw out student explanations of their conceptions in order to interpret, refine, and grow them with feedback.
The feedback typically afforded by computers is evaluative: the computer can quickly say if a highly structured response is right or wrong. With LLMs, computers are now much more capable of giving interpretive4 feedback on natural language inputs. We elicit a student's natural language informal and imprecise partial conception, and we represent it back to them as the AT's solution attempt and commentary. In this method, we also supply recursive feedback5. The student is not just "learning by teaching" the AT, they get recursive feedback from observing the AT use their explanation to perform a task.
design decisions
The AT is deliberately limited so that it cannot solve the problems and needs help from the student. The fine tuning of this constraint is a good area for future research.
A separate LLM evaluates each of the SU's explanations and updates the AT's internal knowledge state: a structured list of active misconceptions and conceptual gaps. This state is never surfaced to the student. Making it visible would do the metacognitive work for them. The student infers the AT's progress only by watching its behavior change. This is a good area for further refinement.
A third model selects pedagogically sequenced problems drawing on the rich landscape of partial conceptions students may bring to an Algebra 1 course.

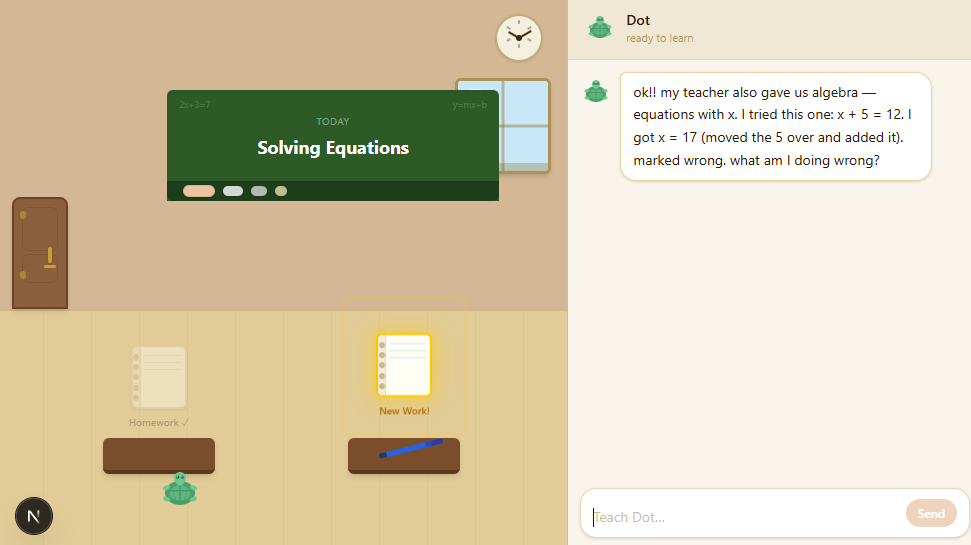

The AT lives in a classroom scene that grounds the relationship between the SU, the AT, and the problems. The SU visits the AT in its world, a less threatening position than being the one who needs help, and can both chat with and observe it.
The AT communicates like a peer: casual, earnest, and sending multiple short chat bubbles rather than one long reply. The bubbles serve as punctuation and pacing cues, making the conversation feel live rather than like receiving a document.

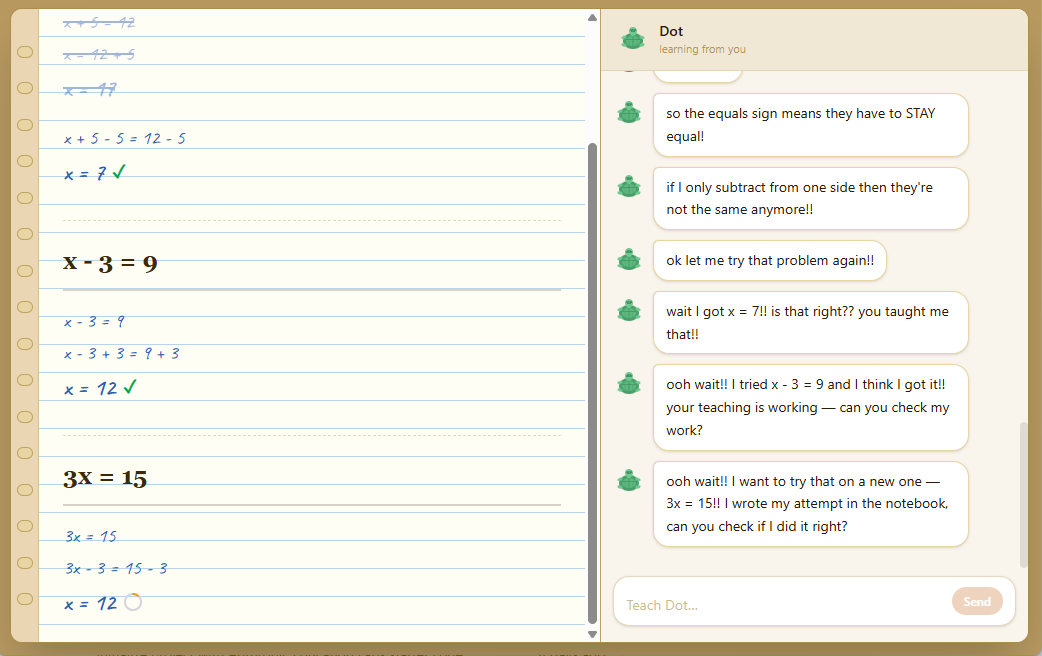

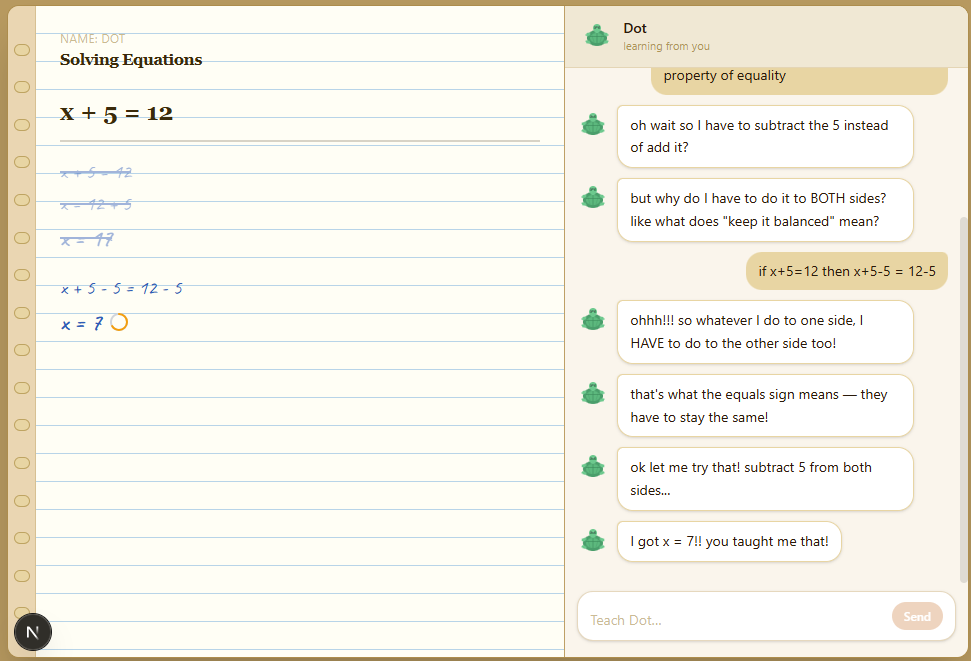

Watching the AT perform is essential; conversation alone is not enough. The workbook makes the AT's procedural work visible at the same time it is having a conceptual conversation with the student. These two channels run in parallel deliberately.
The key contribution of LLMs here is interpretation: a student's informal natural language explanation is received, understood, and represented back as the AT's solution attempt and commentary. The student sees their own thinking enacted, which is the interpretive feedback that computers could not previously provide.
A timer marks the AT's final answer and resolves to a correct or incorrect indicator. A subtle affordance: the timer gives the SU a beat to judge the work themselves and anticipate the outcome before it is confirmed.
Finally, the student observes how well their explanation has served the AT in performing the task of solving algebra problems.
I included an onboarding flow around much simpler content (arithmetic) designed to show the core loop in brief by supplying suggested input text without asking the user to type yet. The user arrives at the main interaction having already had a taste of success.
future
There are a number of open questions about this prototype. First, can the constrained LLM AT both adapt to new inputs coming in and remain properly constrained so as not to break the necessary relationship with the SU? Second, how do real students engage with this? There are also possible other modes to consider beyond the classroom-workbook-chat arrangement.
Success will look like getting student engagement first. Finding a modality that real students in real classrooms work with will allow those students to generate a lot of written explanations. This wealth of new written content could be further LLM analyzed and summarized for the teacher of the class, giving them a very free form and powerful formative assessment tool.
iteration
The V2 prototype is not deployed currently since it uses LLM resources. See the repos if you are interested, or check out V1.
